- Open Access
Fresh raspberry phytochemical extract inhibits hepatic lesion in a Wistar rat model
- Yan Liu†1,
- Ming Liu†1Email author,
- Bin Li†1,
- Jin-Lu Zhao1,
- Chun-Peng Zhang1,
- Luo-Qiang Lin1,
- Hong-Sheng Chen1,
- Shu-Jun Zhang1,
- Jun-Chao Jin1,
- Lei Wang1,
- Le-Jing Li2 and
- Jia-Ren Liu3, 4Email author
© Liu et al; licensee BioMed Central Ltd. 2010
- Received: 19 September 2010
- Accepted: 25 November 2010
- Published: 25 November 2010
Red raspberry possesses potent antioxidant capacity and antiproliferative activity against cancer in vitro.
The objective of this study was to determine the protective effects of raspberry 80% acetone extract in a rat hepatic lesions model induced by diethylnitrosamine (DEN). Rats were treated with the red raspberry extract (0.75, 1.5 or 3.0 g/kg of body weight) by gavage starting 2 h after DEN administration and continuing for 20 weeks.
A dose-dependent inhibition by red raspberry extract of DEN-induced hepatic nodule formation which stands for hepatic lesions was observed. Corresponding hepatic nodule incidence rates were 45.0, 40.0, 25.0 and 5.0% in positive control, low, middle and high groups, respectively (P < 0.01 or 0.05). Gross findings, histopathological and ultrastructural evaluations of hepatic lesion were performed on 9, 8, 5 and 1 hepatic nodule in positive control, low, middle and high doses of groups, respectively, identified in rats from the respective groups of 20. A decreasing trend of proportions of hepatocellular carcinoma masses accompanied the increasing doses of red raspberry extract.
These findings demonstrate that the potent capacity of red raspberry diet could not only suppress DEN-induced hepatic lesions in rats, but also reduce the definite diagnostic features of neoplasm.
- Negative Control Group
- Hepatic Lesion
- Positive Control Group
- Hepatic Cancer
Hepatic cancer is a major public health problem throughout the entire world. It was estimated that approximately 24,120 new cases would be diagnosed and more than 18,910 people died from hepatic and intrahepatic bile duct cancers in the United Stated alone in 2010 . Although the incidence rate of hepatic cancer has been falling in most countries worldwide, the decrease has been slower in developing countries than that in the developed countries . By contrast the incidence of primary hepatic cancer is increasing in several developed countries, including the United States . Although diagnosis and treatment are the major strategies of controlling cancer, chemoprevention is one of the best strategies for prevention.
Lifestyle and/or environmental factors, especially dietary factors, play an important role in influencing cancer risk. It has been reported that more than 30% of human cancers could be prevented by an alternative strategy of appropriate dietary modification [3, 4]. Epidemiological and laboratory studies, including case-control and cohort studies, have consistently shown that regular consumption of fruits and vegetables is associated with a markedly reduced risk of developing cancer and other chronic diseases [5–12]. Based on the findings that a high consumption of fruit and vegetables is inversely related to a risk of hepatic cancer , scientists have suggested that possible anticarcinogenic mechanisms of phytochemicals in fruits and vegetables are primary contributors to the health benefits in the chemoprevention of cancer [13, 14]. The health benefits of raspberry or raspberry constituents have been ascribed to: antioxidant [15, 16], anti-inflammation , low body weight , and inhibitory cancer cell growth [19–21]. In previous studies, raspberry extract and its constituents had potent antioxidant capacity, and inhibited the growth of mammary, oral, colon, prostate and liver cancer cells in a dose-dependent manner [19, 22]. However, it is not reported that whether raspberry extract inhibits hepatic lesions induced by chemical in an animal model. The objective of the present study was to determine whether raspberry phytochemical extract prevented against hepatic lesions in a rat model.
Red Raspberry Extraction
The red raspberries (Rubus idaeus L.) were purchased from a supermarket in China. Fresh red raspberries were cleaned before extraction. The red raspberries were extracted using the method reported previously in our laboratory [9, 12]. Briefly, 100 g of fresh weight of the red raspberries were weighed and homogenized with chilled 80% acetone (1:2, w/v) using a chilled Waring blender for 5 min. The sample was then further homogenized using a Polytron homogenizer for an additional 3 min. The homogenates were filtered through Whatman #1 filter paper on a Buchner funnel under vacuum. The filtrate was evaporated at 45°C until approximately 90% of the filtrate had been evaporated. The raspberry extract was standardized to contain 437.62 ± 29.94 mg total phenolics (gallic acid equivalents) per 100 g raspberries. The standardized raspberry extracts were frozen and stored at -80°C until use in the feeding study. Control extracts were also prepared using the same extraction solvents and procedures without red raspberries.
Animal Care and Treatment
Pathogen-free male Wistar rats, 130 - 140 g of body weight, were purchased from Sino-British SIPPR/BK Lab Animal Ltd (Shanghai, China). The rats adapted immediately to the AIN-93 M diet and were housed in a room with a 12 h light/12 h dark cycle. The rats were acclimated to the surroundings in the animal room for 1 week prior to the initiation of the experiment. Care and treatment of rats followed the recommended guidelines of the National Research Council (1985). The rats were randomly assigned to five groups (n = 20/group). Three raspberry treated and positive control groups of rats were given 10 mg/kg body weight of diethylnitrosamine (DEN, Sigma Chemical Co., St. Louis, MO) water solution by gavage once and continue to drink 0.025% DEN water ad libitum for 20 weeks; the fifth group which received no DEN but was given 1 mL of distilled water served as the negative control group. Rats were administered the control extracts or red raspberry extract starting 2 h after DEN administration and continuing for 20 weeks. Three levels of low, middle, and high doses of red raspberry extract were given to the rats by gavage corresponding to 0.75, 1.5, and 3.0 g fresh raspberry/kg/day body weight raspberry extract, respectively. The control groups fed with control extraction. Animals were weighed weekly. All animals were sacrificed under anesthesia at the end of the 20th week after DEN administration. Livers were rapidly removed and weighed. The relative liver weight was calculated on the basis of final body weights. Livers were cut into 5 to 8 sections to find whether there have nodules which were stand for hepatic lesions of rat induced by DEN.
Light and Electron Microscope
Part of nodules from the positive control and experimental groups were fixed in 10% neutral formalin solution and subsequently dehydrated and embedded in paraffin. The tissue wax was cut into 5 μm sections, fixed on slides and processed for microscopy examination (stained with hematoxylin and eosin, H&E) analyses. Histopathological evaluation was carried out on coded slides following the IARC (International Agency for Research on Cancer) classification of rodent hepatic lesions . Two independent pathologists evaluated these sections in a double blind manner. Both investigators under a multihead microscope reassessed the sections in cases of disagreement.
For transmission electron microscopy (TEM), portions of nodules were removed by dissection and fixed at 4°C for 1 - 4 h in 3% glutaraldehyde in 0.2% sodium cacodylate buffer (pH 7.0) containing 30 mg/mL NaCl and 2 μg/mL CaCl2; postfixation followed at 4°C for 4 h in 1% OsO4 minus salts. Sections were rinsed twice in 0.2 mol/L sodium cacodylate buffer and dehydrated through a graded ethanol series. Subsequently, the sections were immersed with Epon 821, embedded in capsules and converged at 60°C for 72 h, and then ultrathin sections (60 nm) were prepared and stained with uranyl acetate and lead citrate. The ultrastructure of cells was examined by TEM .

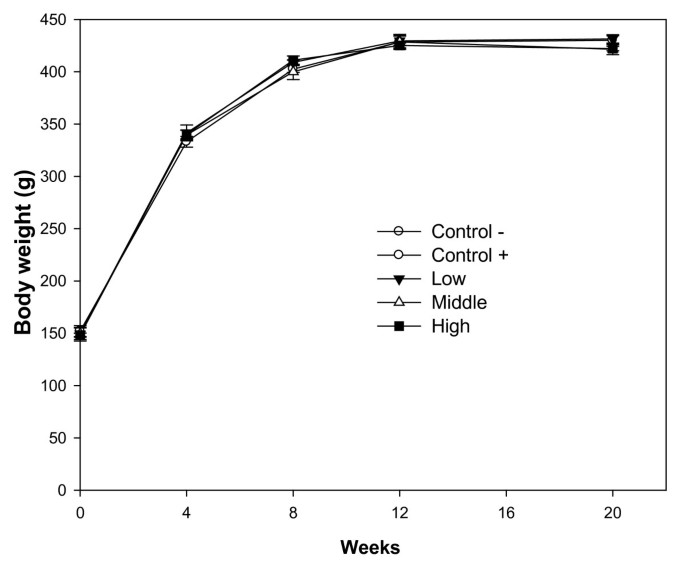

Data were expressed as mean ± S.D. A one-way analysis of variance was used to analyze body weight. Fisher's Exact Test was used to compare the percentage of rats with liver lesions and histology in each group. Data analyses were generated and plots were constructed using SPSS for Windows version 18.0 (SPSS Inc., Chicago, IL) and SigmaPlot version 11.20 for Windows (Systat Software Inc., San Jose, CA). Statistical significance was set at P < 0.05 or P < 0.01.
Effects of Raspberry Extract on the Prevention of Hepatic Lesions
Preventive effects of hepatocarcinogenesis of red raspberry extract in a Wistar rat model a
(g/kg of b.w.)
no. of rats with nodules/total no. of rats
liver index (g/100 g b.w.)
(mean ± S.D.)
2.61 ± 0.49
2.66 ± 0.18
2.78 ± 0.50
2.90 ± 0.78*
2.54 ± 0.23
Gross findings of rat liver in DEN-induced hepatic lesions
Classes of hepatic lesions in the control and red raspberry-treated groupsa
no. of rats with nodules
Red raspberry has been used throughout the centuries for nutritional and medicinal purposes. In a previous study, the red raspberry extract showed a significant inhibition of growth of human oral (KB, CAL-27), breast (MCF-7), colon (HT-29, HCT116), and prostate (LNCaP) tumor cell lines at doses ranging from 25 to 200 μg/mL and stimulation of apoptosis of the Cox-2 expressing colon cancer cell line, HT-29 . Liu et al. also showed that four varieties of raspberry significantly inhibited the proliferation of HepG2 human liver cancer cells in a dose-dependent manner . In another study, red raspberry extract significantly inhibited the proliferation of human hepatic cancer HepG2 and human colon cancer CaCo-2 cells in a dose-dependent manner [22, 25]. The red raspberry extract was also shown to inhibit cell proliferation of HT-29 colon cancer mainly via the p21WAF1 pathway . The red raspberry extract and its components reduced endogenous oxidative DNA damage in vitro and in vivo .
Diethylnitrosamine (DEN) is a representative chemical carcinogen with the potential to cause tumors in various organs, including the liver, skin, gastrointestinal tract, and respiratory system. DEN is a complete carcinogen to induce hepatocellular carcinoma . DEN is also well known as a reliable carcinogen to induce lesions in rat that mimic the different types of benign and malignant tumors in human [29, 30]. In this study, rats were fed three levels of 0.75 (low), 1.5 (middle), and 3.0 (high) g fresh red raspberries/kg body weight per day starting after DEN administration and continuing for 20 weeks. The positive control group with carcinogen DEN developed hepatic lesions with 45.0% nodule incidence and no nodules were detected in the negative control group without DEN. A dose-dependent inhibition of hepatic lesions by fresh red raspberry extract was observed (Table 1). These results demonstrate for the first time that red raspberry extract has potent anticarcinogenic activity induced by DEN in a rat model. The nodule incidence was decreased in a dose-dependent manner. This study also first reported the incidence of hepatic lesion in a DEN-induced rat model.
At the termination of the experiment, the rats were necropsied, and grossly visible, tan nodu1es, which bulged from the external and cut surface of the liver, were found in the positive and red raspberry treated groups. These nodules were analyzed by histopathological staining. The main histopathological differential diagnoses in the hepatic lesion tissues include hyperplasia, fibrosis and hepatocellular carcinomas based on the IARC classification of rodent tumors . The normal liver shows normal hepatocellular architecture mainly consisting of normal hepatic parenchyma (Figure 3A and 3B). The hepatic hyperplasia shows cell proliferation and little difference from those in normal liver and the cellular architecture of hepatocyte presented almost normal hepatocellular architecture (Figures 3C and 3D). The hepatic fibrosis shows that nodules were also variably encased in fibroconnective tissue, which in turn was invested by a rim of compressed hepatocytes (Figures 3E and 3F). The hepatocellular carcinoma shows that within the nodular areas, bile ducts were scanty or absent and lobular architecture was not preserved. The individual intranodular hepatocytes were large, oval- or irregular-shaped, and their cytoplasm was abundant. The cytoplasm was loose and irregularly extensive vacuolated with masses of acidophilic materials, although this was not invariable (Figures 3G and 3H). The nucleus was often binucleated and pleomorphic nuclei with granular chromatin. Sometimes large basophilic hyperchromatic nuclei were also found (Figure 3H). The type of hepatocellular carcinomas is a kind of highly malignant tumor and also the main cause of death in hepatic cancer animals and hepatic cancer patients, and is a main target for chemotherapy. Hepatocellular carcinomas are always accompanied by occurrence of distant metastasis and areas of necrosis, ulceration, and hemorrhage [31, 32]. Some phytochemicals, including curcumin, resveratrol, green tea catechins, oltipraz and silibinin shown to suppress hepatic carcinogenesis in experimental studies, possess promising chemopreventive and chemotherapeutic properties [33, 34]. These phytochemicals will bring wide perspectives for liver cancer patients, specifically those with hepatocellular carcinoma. Any potential agents are generally tolerated, nontoxic, inexpensive and sufficiently bioavailable, and acceptable to patients by oral administration. In our study, there was no toxicity observed in the animals fed the red raspberry extract at the doses tested. The pathological findings in this study showed that there was 55.6% hepatocellular adenocarcinoma in the control group and 25.0, 40.0, and 0% in the three levels of low, middle, and high doses of red raspberry treatment, respectively, during the 20-week study (P < 0.05). The ultrastructural findings showed that the neoplastic cells had an abundant cytoplasm either finely and homogeneously granular, or containing multiple small cytoplasmic vacuoles or some widely scattered hyperchromatic variable-sized nuclei, or rich endoplasmic reticulum, or appearing polyribosomes and monoparticulate glycogen. Thus, red raspberry diet could not only reduce nodule incidence, but also reduce markers of the diagnostic features of the neoplasm. Red raspberry might be a potential candidate agent of chemoprevention or therapeutics for hepatocellular adenocarcinoma.
The major groups of phenolic compounds present in red raspberries are reported to be anthocyanins, flavonols, flavanols, ellagitannins, gallotannins, proanthocyanidins, and phenolic acids . The major anthocyanins and tannins identified are as follows: cyanidin-3-sophoroside, cyanidin-3-glucoside, pelargonidin-3-glucoside and predominantly hydrolyzable tannins (ellagitannins and gallotannins) as well as ellagic and gallic acid. A mixture of 15 anthocyanidin 3-O-glycosides, cyaniding 3-glucoside, ellagic acid, and gallic acid decreased the proliferation of HT-29 cells in a dose - dependent manner . These compounds are metabolized by the liver, implying the liver is directly exposed to these compounds by compounds themselves or metabolites, which may explain why the raspberry diet so effectively protected the liver lesions against a DEN insult. However, we did not analyze the phytochemical composition of this extraction. The constituents of the red raspberry extract used in this study as well as their bioavailability need to be further analyzed.
In summary, our data suggested that fresh red raspberry extract possesses potent activity to suppress DEN-induced hepatic lesions in a rat model. The extracts not only inhibited incidence of nodules, but also suppressed the ratio of hepatocellular adenoma and reduced the definite diagnostic features of neoplasm in a DEN-induced rat model. However, the exact mechanism(s) of how red raspberries prevent hepatic lesions needs to be further studied.
This work was supported by the Technological Innovation Project of Harbin Science and Technology Bureau, People's Republic of China (No. 2009RFLXS002) and the National Natural Science Fund, People's Republic of China (No. 30973427) and the Specialized Research Fund for the Doctoral Program of Higher Education, People's Republic of China (No. 20092307110019). Yan Liu, Ming Liu and Bin Li are co-first authors. Jia-Ren Liu and Ming Liu are co-corresponding authors.
- Jemal A, Siegel R, Xu J, Ward E: Cancer statistics, 2010. CA: a cancer journal for clinicians. 2010, 60: 277-300. 10.3322/caac.20073.Google Scholar
- Bosch FX, Ribes J, Diaz M, Cleries R: Primary liver cancer: worldwide incidence and trends. Gastroenterology. 2004, 127: S5-S16. 10.1053/j.gastro.2004.09.011.View ArticleGoogle Scholar
- Doll R, Peto R: The causes of cancer: quantitative estimates of avoidable risks of cancer in the United States today. Journal of the National Cancer Institute. 1981, 66: 1191-308.Google Scholar
- Willett WC: Balancing life-style and genomics research for disease prevention. 2002, Science (New York, NY), 296: 695-8.Google Scholar
- Block G, Patterson B, Subar A: Fruit, vegetables, and cancer prevention: a review of the epidemiological evidence. Nutrition and cancer. 1992, 18: 1-29. 10.1080/01635589209514201.View ArticleGoogle Scholar
- Liu JR, Sun XR, Dong HW, Sun CH, Sun WG, Chen BQ: beta-Ionone suppresses mammary carcinogenesis, proliferative activity and induces apoptosis in the mammary gland of the Sprague-Dawley rat. Int J Cancer. 2008, 122: 2689-98. 10.1002/ijc.23453.View ArticleGoogle Scholar
- Liu JR, Dong HW, Sun XR, Wang Q, Sun WG, Parry JW: Effects of β-ionone on mammary carcinogenesis and antioxidant status in rats treated With DMBA. Nutrition and cancer. 2010, 62: 58-65. 10.1080/01635580903191510.View ArticleGoogle Scholar
- Bi S, Liu JR, Li Y, Wang Q, Liu HK, Yan YG: gamma-Tocotrienol modulates the paracrine secretion of VEGF induced by cobalt(II) chloride via ERK signaling pathway in gastric adenocarcinoma SGC-7901 cell line. Toxicology. 2010, 274: 27-33. 10.1016/j.tox.2010.05.002.View ArticleGoogle Scholar
- Liu JR, Dong HW, Chen BQ, Zhao P, Liu RH: Fresh apples suppress mammary carcinogenesis and proliferative activity and induce apoptosis in mammary tumors of the Sprague-Dawley rat. Journal of agricultural and food chemistry. 2009, 57: 297-304. 10.1021/jf801826w.View ArticleGoogle Scholar
- Liu M, Liu RH, Song BB, Li CF, Lin LQ, Zhang CP: Antiangiogenetic Effects of 4 Varieties of Grapes In Vitro. Journal of food science. 2010, 75: T99-T104. 10.1111/j.1750-3841.2010.01662.x.View ArticleGoogle Scholar
- Kurahashi N, Inoue M, Iwasaki M, Tanaka Y, Mizokami M, Tsugane S: Vegetable, fruit and antioxidant nutrient consumption and subsequent risk of hepatocellular carcinoma: a prospective cohort study in Japan. Br J Cancer. 2009, 100: 181-4. 10.1038/sj.bjc.6604843.View ArticleGoogle Scholar
- Liu M, Lin LQ, Song BB, Wang LF, Zhang CP, Zhao JL: Cranberry phytochemical extract inhibits SGC-7901 cell growth and human tumor xenografts in Balb/c nu/nu mice. Journal of agricultural and food chemistry. 2009, 57: 762-8. 10.1021/jf802780k.View ArticleGoogle Scholar
- Craig WJ: Phytochemicals: guardians of our health. J Am Diet Assoc. 1997, 97: S199-204. 10.1016/S0002-8223(97)00765-7.View ArticleGoogle Scholar
- Heber D: Vegetables, fruits and phytoestrogens in the prevention of diseases. J Postgrad Med. 2004, 50: 145-9.Google Scholar
- Wang SY, Lin HS: Antioxidant activity in fruits and leaves of blackberry, raspberry, and strawberry varies with cultivar and developmental stage. Journal of agricultural and food chemistry. 2000, 48: 140-6. 10.1021/jf9908345.View ArticleGoogle Scholar
- Parry J, Su L, Luther M, Zhou K, Yurawecz MP, Whittaker P: Fatty acid composition and antioxidant properties of cold-pressed marionberry, boysenberry, red raspberry, and blueberry seed oils. Journal of agricultural and food chemistry. 2005, 53: 566-73. 10.1021/jf048615t.View ArticleGoogle Scholar
- Popkov VA, Fetisova AN, Nesterova OV, Samylina IA: [Experience in using phytopreparations to prevent and correct inflammatory urinary tract diseases]. Vestnik Rossiiskoi akademii meditsinskikh nauk/Rossiiskaia akademiia meditsinskikh nauk. 2001, 11-3.Google Scholar
- Morimoto C, Satoh Y, Hara M, Inoue S, Tsujita T, Okuda H: Anti-obese action of raspberry ketone. Life sciences. 2005, 77: 194-204. 10.1016/j.lfs.2004.12.029.View ArticleGoogle Scholar
- Seeram NP, Adams LS, Zhang Y, Lee R, Sand D, Scheuller HS: Blackberry, black raspberry, blueberry, cranberry, red raspberry, and strawberry extracts inhibit growth and stimulate apoptosis of human cancer cells in vitro. Journal of agricultural and food chemistry. 2006, 54: 9329-39. 10.1021/jf061750g.View ArticleGoogle Scholar
- Boivin D, Blanchette M, Barrette S, Moghrabi A, Beliveau R: Inhibition of cancer cell proliferation and suppression of TNF-induced activation of NFkappaB by edible berry juice. Anticancer research. 2007, 27: 937-48.Google Scholar
- Aiyer HS, Kichambare S, Gupta RC: Prevention of oxidative DNA damage by bioactive berry components. Nutr Cancer. 2008, 60 (Suppl 1): 36-42. 10.1080/01635580802398448.View ArticleGoogle Scholar
- Liu M, Li XQ, Weber C, Lee CY, Brown J, Liu RH: Antioxidant and antiproliferative activities of raspberries. Journal of agricultural and food chemistry. 2002, 50: 2926-30. 10.1021/jf0111209.View ArticleGoogle Scholar
- Mohr U, editor: International classification of rodent tumors. 1992, Lyon, France: IARC Scientific PublicationGoogle Scholar
- Liu JR, Chen BQ, Yang BF, Dong HW, Sun CH, Wang Q: Apoptosis of human gastric adenocarcinoma cells induced by beta-ionone. World journal of gastroenterology: WJG. 2004, 10: 348-51.Google Scholar
- McDougall GJ, Ross HA, Ikeji M, Stewart D: Berry extracts exert different antiproliferative effects against cervical and colon cancer cells grown in vitro. Journal of agricultural and food chemistry. 2008, 56: 3016-23. 10.1021/jf073469n.View ArticleGoogle Scholar
- Wu QK, Koponen JM, Mykkanen HM, Torronen AR: Berry phenolic extracts modulate the expression of p21(WAF1) and Bax but not Bcl-2 in HT-29 colon cancer cells. Journal of agricultural and food chemistry. 2007, 55: 1156-63. 10.1021/jf062320t.View ArticleGoogle Scholar
- Aiyer HS, Vadhanam MV, Stoyanova R, Caprio GD, Clapper ML, Gupta RC: Dietary berries and ellagic Acid prevent oxidative DNA damage and modulate expression of DNA repair genes. Int J Mol Sci. 2008, 9: 327-41. 10.3390/ijms9030327.View ArticleGoogle Scholar
- Verna L, Whysner J, Williams GM: N-nitrosodiethylamine mechanistic data and risk assessment: bioactivation, DNA-adduct formation, mutagenicity, and tumor initiation. Pharmacol Ther. 1996, 71: 57-81. 10.1016/0163-7258(96)00062-9.View ArticleGoogle Scholar
- Li X, Zhou XP, Guan YS, Wang YX: Magnetic resonance imaging of hepatocellular carcinoma induced by diethylnitrosamine in Sprague-Dawley rats. Hepatobiliary Pancreat Dis Int. 2005, 4: 427-32.Google Scholar
- Kim MR, Kim HS, Lee MS, Lee MJ, Jang JJ: Cell cycle protein profile of the hepatic stellate cells(HSCs)in dimethylnitrosamine-induced rat hepatic fibrosis. Experimental & molecular medicine. 2005, 37: 335-42.View ArticleGoogle Scholar
- Tocci G, Conte A, Guarascio P, Visco G: Spontaneous remission of hepatocellular carcinoma after massive gastrointestinal haemorrhage. Bmj. 1990, 300: 641-2. 10.1136/bmj.300.6725.641.View ArticleGoogle Scholar
- Maruyama A, Murabayashi K, Hayashi M, Nakano H, Isaji S, Uehara S: Hepatocellular carcinoma complicated by gastrointestinal hemorrhage caused by direct tumor invasion of stomach. J Hepatobiliary Pancreat Surg. 1999, 6: 90-3. 10.1007/s005340050089.View ArticleGoogle Scholar
- Nishino H: Phytochemicals in hepatocellular cancer prevention. Nutrition and cancer. 2009, 61: 789-91. 10.1080/01635580903285031.View ArticleGoogle Scholar
- Mann CD, Neal CP, Garcea G, Manson MM, Dennison AR, Berry DP: Phytochemicals as potential chemopreventive and chemotherapeutic agents in hepatocarcinogenesis. Eur J Cancer Prev. 2009, 18: 13-25. 10.1097/CEJ.0b013e3282f0c090.View ArticleGoogle Scholar
- Wu X, Prior RL: Systematic identification and characterization of anthocyanins by HPLC-ESI-MS/MS in common foods in the United States: fruits and berries. Journal of agricultural and food chemistry. 2005, 53: 2589-99. 10.1021/jf048068b.View ArticleGoogle Scholar
